High precision mechanical micrometer for the acquisistion of deformations during flat jacks tests or structural monitoring of cracks.

The Mechanical Strain Gauge DN250-10 produced by NOVATEST, finds its ideal application in the operations of monitoring holes or evidence of deformation with the use of flat jacks.

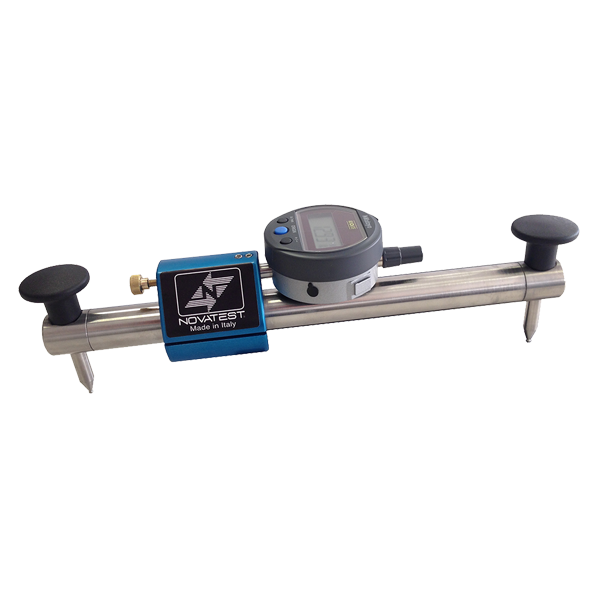

The instrument is composed of a comparator (analog or digital) with a level of precision of a hundredth or thousandth of a millimeter (0.01 / 0,001), mounted on a metal bar where a conical headed pin is fixed to a end of the bar.

Another similar pin is mounted on a slider on the opposite end allowing to have longitudinal excursions of a few millimeters (± 5 mm).
The movement of the pin acts on the comparator, which in turn shows the displacements in its quadrant.

The Mechanical Strain Gauge DN250-10 has been designed to resist changes in temperature and developed with the mechanical characteristics and dimensional tolerances which exclude the possibility of movements that are not those permitted guaranteeing a constant repeatability of measurements.
Through the positioning template, you can plot the points on the structure of the drill holes and the subsequent insertion of bases for measuring or strongholds (fixed to the structure).
Using the template of “calibration” can then verify the correct resetting of the comparator before the test.

The use of mechanical strain gauge allows accurate levels of approximation (0.001 mm thousandth of a millimeter) as is required in situations of distress or during the probes with flat jacks on masonry.

The instrument consists of a metal bar to the ends of which are mounted two heads / terminal pins with conical points, one is fixed while the other is free to swing on a slider system housed inside the bar.
Readings of the displacements are then displayed in a digital comparator, or hundredths micron resolution (0.01 mm / 0.001 mm).

Completing the instrument:

  • Measuring position bar;
  • Calibrating bar;
  • Box of mounting points.


  • Stroke: 10 mm;
  • Wheelbase: 250mm (optional: 200mm, 300mm, 350mm, 500mm):
  • Resolution: 0.01 / 0.001:
  • Comparator type: analog / digital.

Standard accessories of Crack Monitoring Gauge DN250-10:

  • Digital/Analogic gauge, stroke 10mm, Res. 0,01/0,001;
  • Measuring position bar;
  • Calibrating bar;
  • No.2 box of 25pcs mounting points: M6x30mm / d.10x4mm;
  • User manual;
  • Carrying case.
